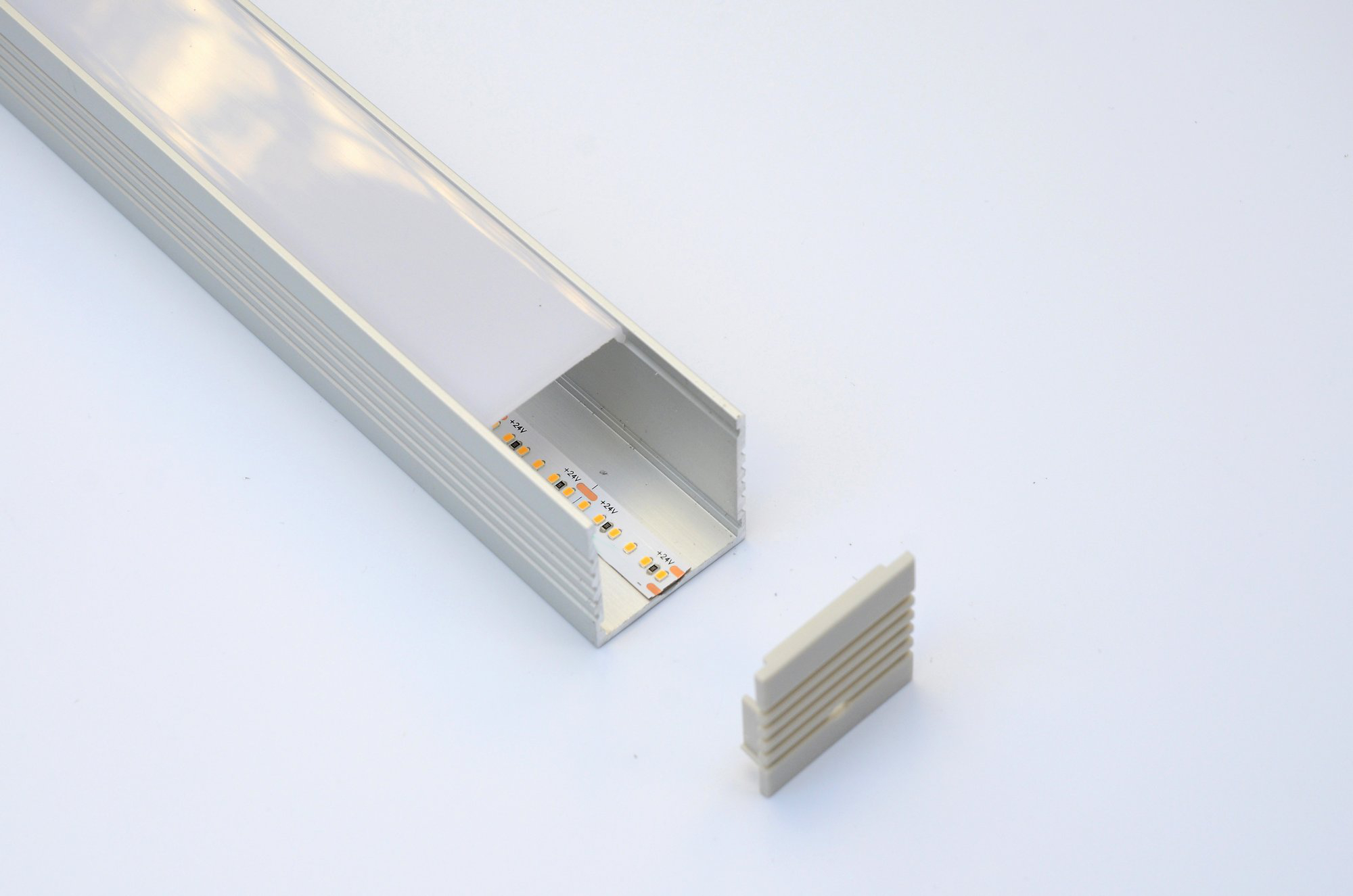

AL-06 Linear LED Profile

Product codes

Aluminium Profile AL-06/1M AL-06/2M
LED Strip 1/2 X 10/15/24W/m 3K 4K – 24V 1/2 X 10/15/24W/m 3K 4K – 24V
Length 1m 2m
Construction anodised aluminium 6063
IP rating IP20

Compatible diffusers

Code Length Finish Construction
DIF-6C/1M 1m clear polycarbonate
DIF-6F/1M 1m frosted polycarbonate
DIF-6O/1M 1m opal polycarbonate
DIF-6C/2M 2m clear polycarbonate
DIF-6F/2M 2m frosted polycarbonate
DIF-6O/2M 2m opal polycarbonate

Accessories

Code Profile Item
AL-6/ENDCAPS Surface mounted 1 pc end cap with hole & 1 pc end cap without hole
AL-6/BRACKET Surface mounted Two brackets for wall mounting
AL-6/Wire Surface mounted (x2) Suspenion cable for AL-6.
AL-6i/ENDCAPS Inset 1 pc end cap with hole & 1 pc end cap without hole
AL-6/BRACKET Inset Two brackets for wall mounting
SKU: AL-06 Categories: ,

Description

The AL-06 is ideal for general lighting, as it can accommodate more than one LED strip dependent on the required power output. The power output can go as high as 48W/m. This comes pre-fitted with electrical connectors at both ends, SS mounting clips and end caps. Corner “L” sections and custom formations are available on request.

Additional information

Dimensions 10 × 3.5 × 3.5 cm
