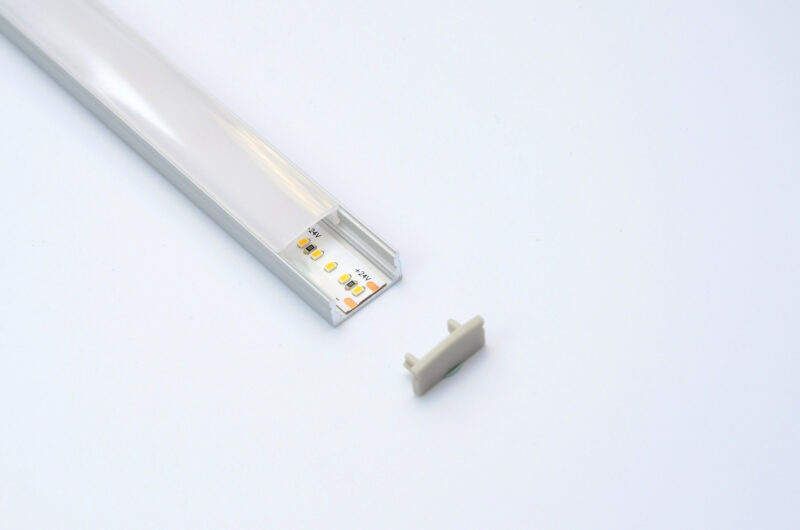

AL-01 Linear LED Profile

The AL-01 is a discreet profile with a shallow depth, making it useful in recessed (with groove/back surface)and surface mounted applications. This profile is ideal for use with lower wattage LED strips. This comes pre-fitted with electrical connectors at both ends, SS mounting clips and end caps.


Product codes

Aluminium Profile AL-01/1M AL-01/2M
LED Strip 5W/m 3K / 4K – 24VDC 3K / 4K – 24VDC
Length 1m 2m
Construction anodised aluminium 6063
IP rating IP20

Compatible diffusers

Code Lenght Finish Construction
DIF-C/1M 1m clear polycarbonate
DF-F/1M 1m frosted polycarbonate
DIF-O/1M 1m opal polycarbonate
DIF-C/2M 2m clear polycarbonate
DIF-F/2M 2m frosted polycarbonate
DIF-O/2M 2m opal polycarbonate


Order code Item
AL-01/CLIP Two mounting clips, 1 pc end cap with hole & 1 pc end cap without hole
AL-01i/ENDCAPS 1 pc end cap with hole & 1 pc end cap without hole

Additional information

Dimensions 100 × 1.4 × 0.8 cm

1m, 2m

Wattage / m

5W, 15W
