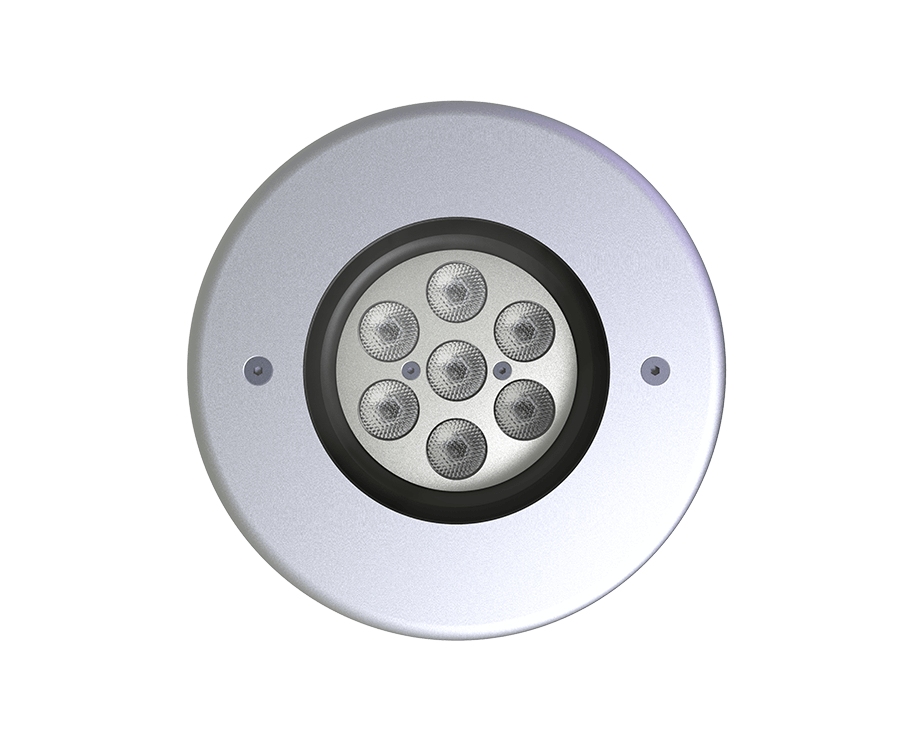

ALTO PROTON-7 LED Inground

0.00

Alto Proton is a versatile inground / underwater recessed luminaire IP67/68 for outdoor recessed applications. It is available in varies sizes and light outputs to meet most of the lighting applications and demands. Minimal product dimensions, low recessing depth, adequate output & high efficiency are the main features of the product.

Description

Technical specifications

  • Lamp category: LED CoB
  • Power (W): 7X1W / 7X3W Max
  • CCT (K): 3000K / 4000K / 6000K / RGB / RGBW
  • CRI:≥90
  • Color consistency: < 3 SDCM
  • Net lumens (lm): 1850 lm
  • Mountings: Recessed
  • Environment: Inground / Underwater / Wet Area
  • L80B20 lifespan: 50,000h at Tp

Optical Parameters

  • Lighting type: Direct
  • LED type: Power LED
  • Light distribution: Symmetric
  • Optical type: Lens
  • Beam angle (°): 10° (24°, 36°,50°)Deg
  • Accessories: Recessing Box

Electrical Parameters

  • Input Voltage: IP68 – 24VDC; IP67: 24VDC/110-240VAC
  • Dimmable: Available
  • Driver: Integral / Remote
  • Driver type: DALI / DMX / Switching
  • Emergency: Without
  • Insulation class: III

Physical Parameters

  • Trim Color: SS
  • IP Ratting: IP67 / IP68
  • Material: Body-Aluminium, trim – Inox / Stainless Steel 316
  • Dimensions: Ø155mm x H75mm; ;Cutout: Ø120x 120mm

Additional information

Wattage

7W, 21W

CCT

3000K, 4000K, 6000K, RGB, RGBW

IP Rating

IP67, IP68
